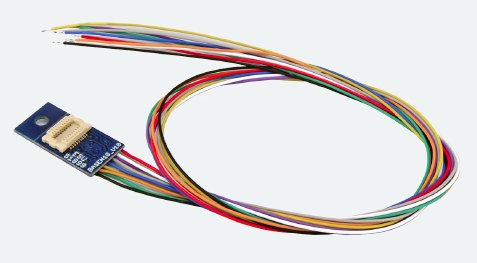

51999 ESU Adapter Board Next18 with 6 Solder Pad Outputs
Click an image to enlarge.

51999 ESU Adapter Board Next18 with 6 Solder Pad Outputs

by ESU

Add To Comparison

51999 ESU Adapter Board, Next18, with 6 Solder Pad Outputs

The Next18 adapter board is suitable if you want to digitize a very small locomotive without a digital interface, but do not want to freely wire the decoder. With dimensions of only 13.0 mm x 9.0 mm, the board is extremely small and also has a break-off fastening tab. For the functions AUX3 and AUX4, which are designed as logic outputs on the decoder according to the standard, power amplifiers (approx. 180mA each) are on board. A total of up to 6 outputs can be used. Already soldered connection cables with a length of approx. 20 cm for the most important contacts ensure easy handling and wiring.



Dimensions: Length 13.0 mm x 9.0 mm (With mounting tongue: 18.0 mm x 9.0 mm).

Name:
51999 ESU Adapter Board Next18 with 6 Solder Pad Outputs
Price:
£ 12.71
Product Code:
FJR002
Availability:
Temporarily out of stock - usually despatched within 28 days
Stock Level:
0
