ACC2831 Accurascale P7 Hopper - NCB Black with white cross
Click an image to enlarge.

ACC2831 Accurascale P7 Hopper - NCB Black with white cross

Add To Comparison

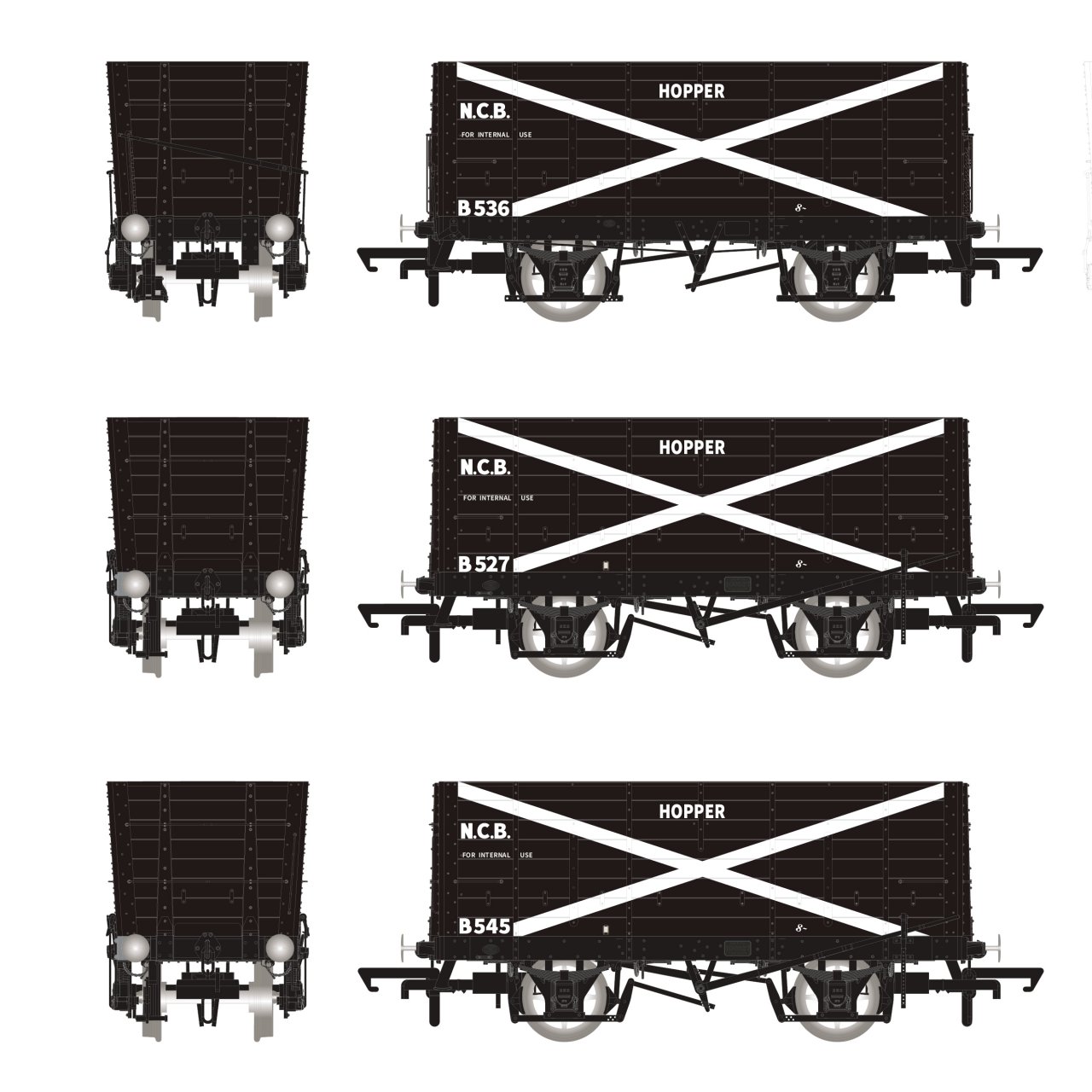

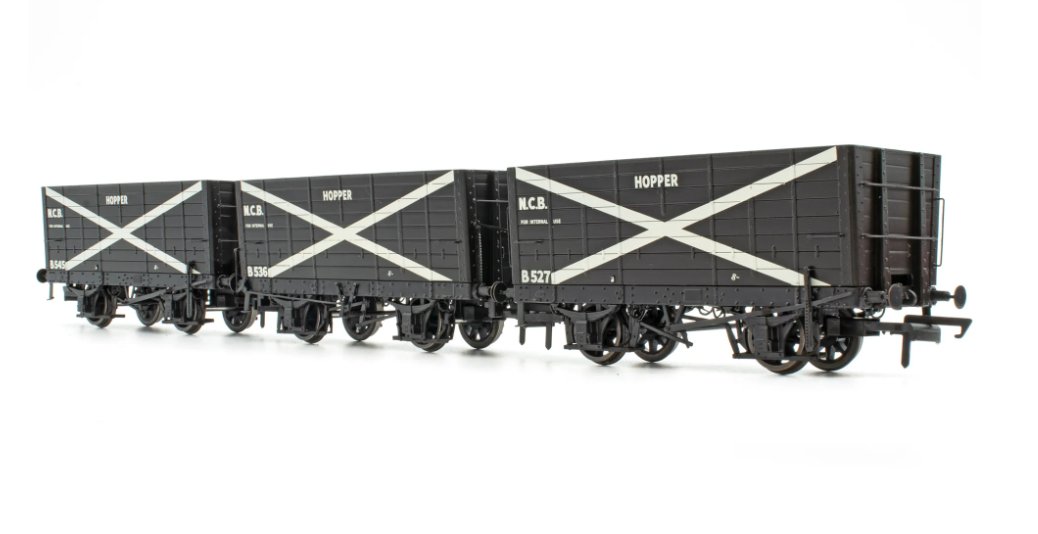

ACC2831 Accurascale P7 Hopper - NCB Black, with white cross - Triple Pack

P7 Hopper - NCB Black, with white cross - Triple Pack

8 plank, 20 ton Diagram P7.
  • Two types of end stanchion tooled: NER wooden or LNER metal ‘T’ bar type from 1925 onwards. After 1926, the bottom sections of any remaining wooden stanchions were removed.
  • Side chains were fitted to NER Northern Division examples until 1916 and have been catered for.
  • Two type types of axle-box tooled: S4 double axleguard (10" x 5") covering 1909 to 1912 and No.3 (10" x 5") covering 1912 to 1930.
  • Double axle-guards, as fitted to new wagons between 1904 until circa 1916, have been tooled for.
  • Differing brake arrangements tooled: Morton single shoe per wheel pattern brakes and Morton Cam pattern (diagonally opposed), as well as 4-shoe clasp on one side of wagon.
  • Handbrakes can be end, or side fitted, with two types of side handbrake arrangement catered for.
  • Body ends will feature the removed central section of bottom plank for Northern and Central Division incline hauled hoppers, as well as the Southern Division solid end.
  • Different corner step arrangements: Left hand opposed corner steps fitted from the end of 1903 onwards, but if Morton Duplex brakes were fitted, steps were put at opposite end. If end handbrake fitted, steps fitted to all corners.
OVERALL DESIGN SPECIFICATION
  • Die-cast metal chassis with plastic body.
  • Scale length of 80mm over headstocks for all four types, 30.67 wide for P6 and 32mm for P7, P8 and Q3.
  • Wheelbase of 42mm, allowing operation over a minimum radius of 371mm (1st radius set-track).
  • Tooling covers three different body designs, with regional and era variations for each.
  • Brake blocks fitted and aligned with wheels.
  • RP25.110 chemically blackened OO gauge split spoke wheels, set into blackened brass bearings and conforming to accurascale standards of 14.4mm back-to-back on 2mm axles over 26mm pinpoints.
  • Eroded metal, plastic and wire detail parts, including (but not limited to) handrails, grab handles, side-door handles, lamp brackets, brake gear, draw gear and anti-friction gear.
  • Representation of internal body detail
  • Turned metal sprung buffers.
  • Small tension locks fitted, set into small, self-centring NEM housings.
  • Authentic livery, markings and numbers, accurate to time period modelled.

New release - pre-orders invited - expected during 1st Quarter 2024. preauthkernow

Name:
ACC2831 Accurascale P7 Hopper - NCB Black with white cross
Gauge:
OO Gauge
Price:
£ 84.95
Product Code:
WMA001
Availability:
Non-Stock Item (Special Order).
Stock Level:
0
