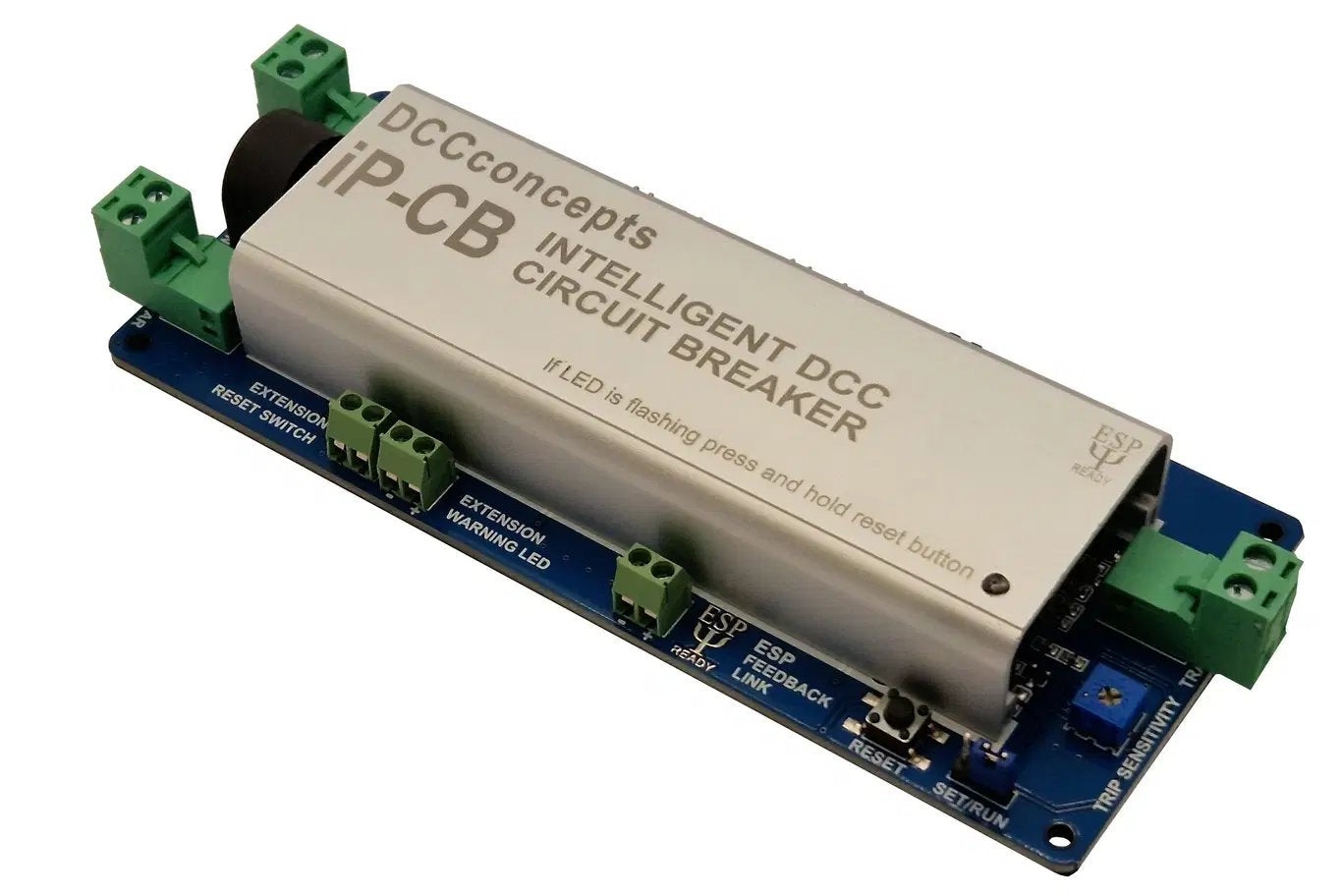

DCD-iPCB.1 Layout Concepts Intelligent Circuit Breaker

Perfect for all brands of DCC systems, including low-powered starter systems such as Hornby, NCE and Prodigy systems. The DCCconcepts Intelligent DCC Circuit Breaker (iP-CB) works out of the box to protect your layout and DCC system against damage caused by overloads and short circuits.

Simple-set jumpers for current limit selection between 1.25A and 5A.

Easy screw terminal connections for track power input and output, trip warning LED, manual reset switch and ESP connections - no solder pads!

ESP connection allows for installation of wireless remote panel indicator

Simple-Set screw adjuster for trip sensitivity so that you can allow for stay-alive charging on your locos

Protective aluminium casing above and insulating pad below for safety

In most cases, simply take the Intelligent DCC Circuit Breaker out of the packaging, connect to your DCC bus wires and you're done!

Dimensions

  • 150mm wide
  • 62mm high
  • 25mm deep
