54 Kadee NEM 363 European-Style Couplers Extra Long (12.30mm)
Order before 2pm and choose Next Day shipping option to receive your order ASAP
Need any product help?

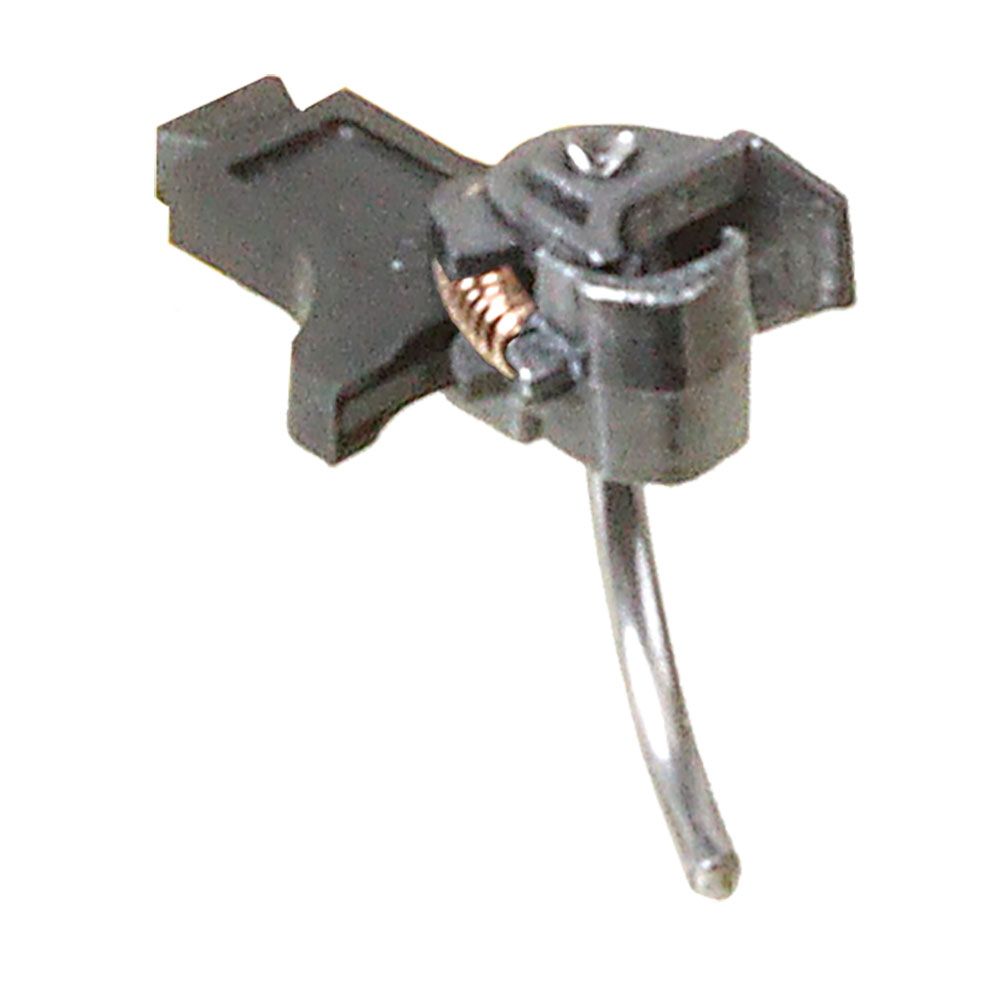

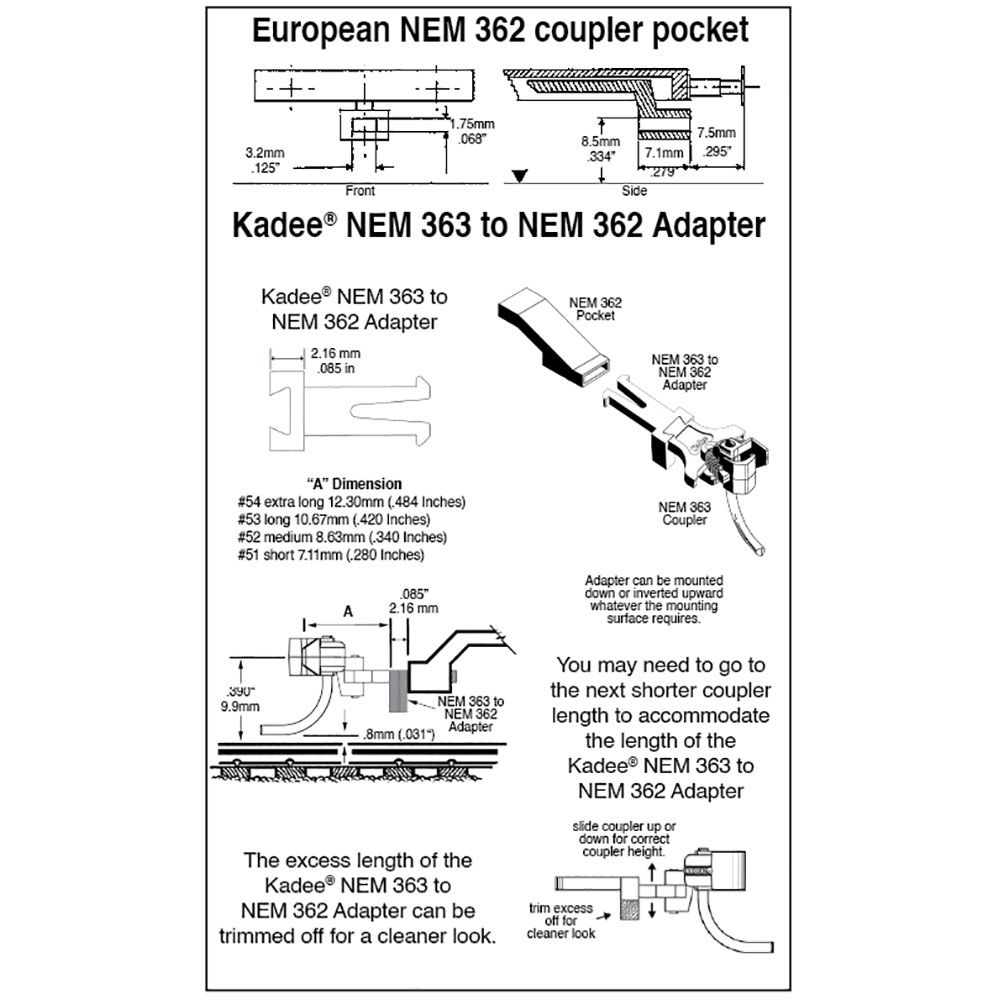

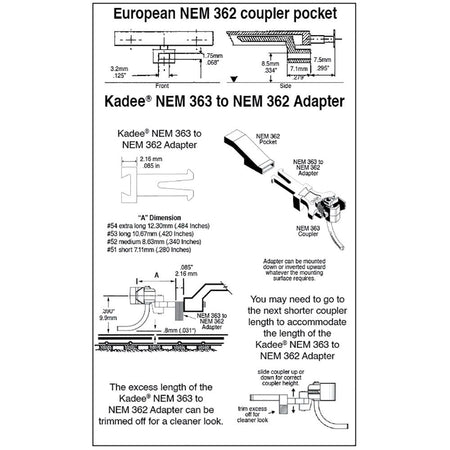

This coupler features an NEM 363 European Style Coupler. The #54 Magne-Matic® NEM 363 European Style Coupler has three mounting options. It can be mounted in a factory NEM-363 pocket, it can be mounted using the Kadee® NEM 363 to NEM 362 Adapter in a NEM 362 pocket, or can be mounted using the Kadee® Bolt-on NEM 363 Adapter to a flat service on the underside of the loco or car. The height of the coupler can be easily adjusted to match the Kadee coupler height gauge by sliding the couple up or down in the dovetail slot. The excess mounting adapter can be trimmed away for a cleaner look.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Package Includes:
- (2) Pair #54 NEM 363 Couplers (Assembled) - Extra Long Underset
- (2) Pair NEM 363 to NEM 362 Adapters
- (2) Pair Bolt-on NEM 363 Adapters
- (2) #622 Knuckle Springs
| Material | - Metal Knuckle, Plastic Coupler Dovetail Shank |
| Shank Length | - Extra Long (12.30mm , .484 inch , 31/64"") (pulling face to the dovetail shoulder) |
| Coupler Offset | - Underset Shank |
| Knuckle Spring | - #622 |
| Centering System | - NEM 363 European Style Coupler |
| Head | - Standard Head |
Mounting Specifications:
| Shank Length | - 12.30mm , .484"" |
| Coupler Centerline Height | - 9.9mm , .390"" |
| Trip Pin Height | - .08mm , .031"" |
| Bolt-on NEM 363 Adapter Screw size | - 0-48 screws or M1.4 metric screws |
