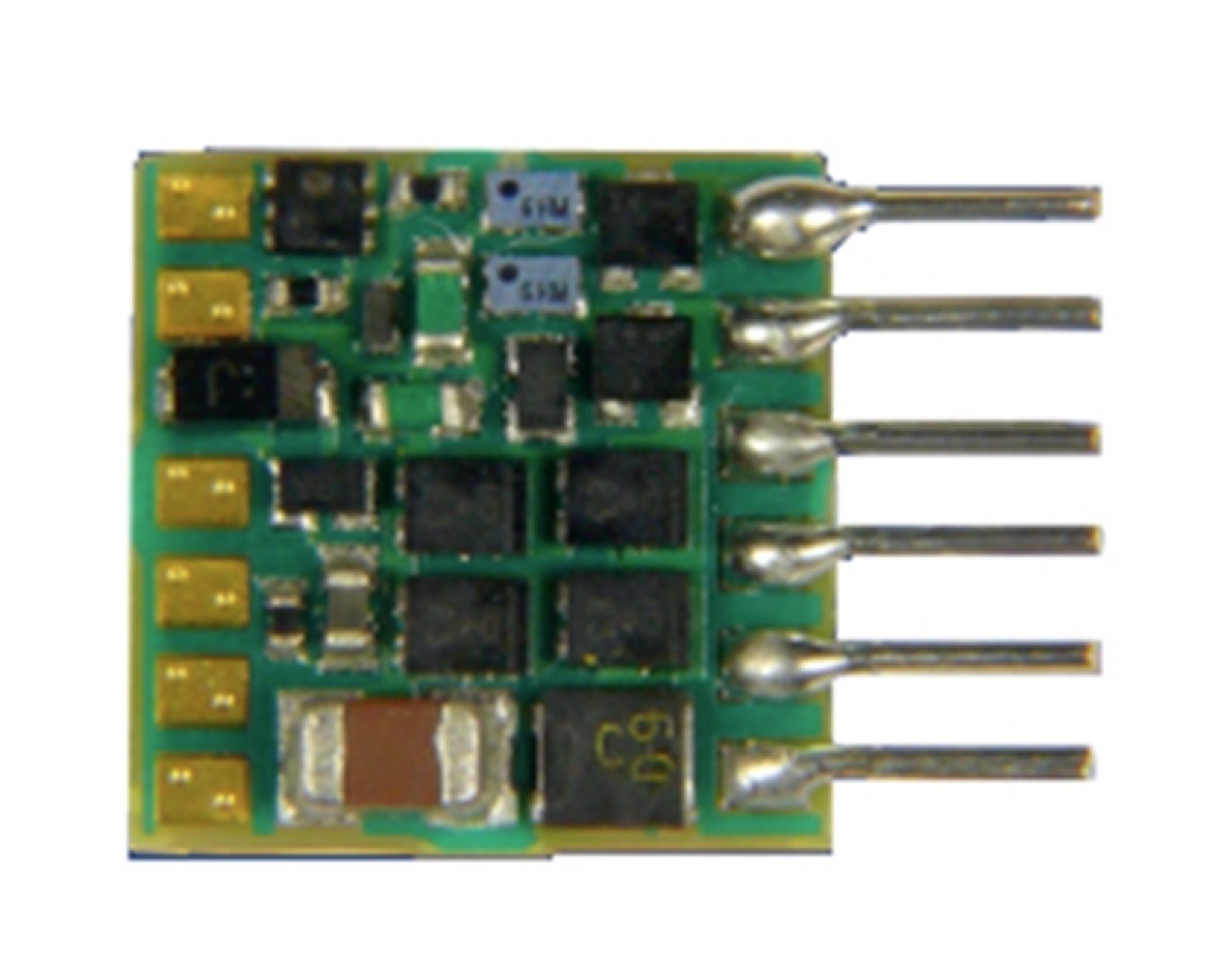

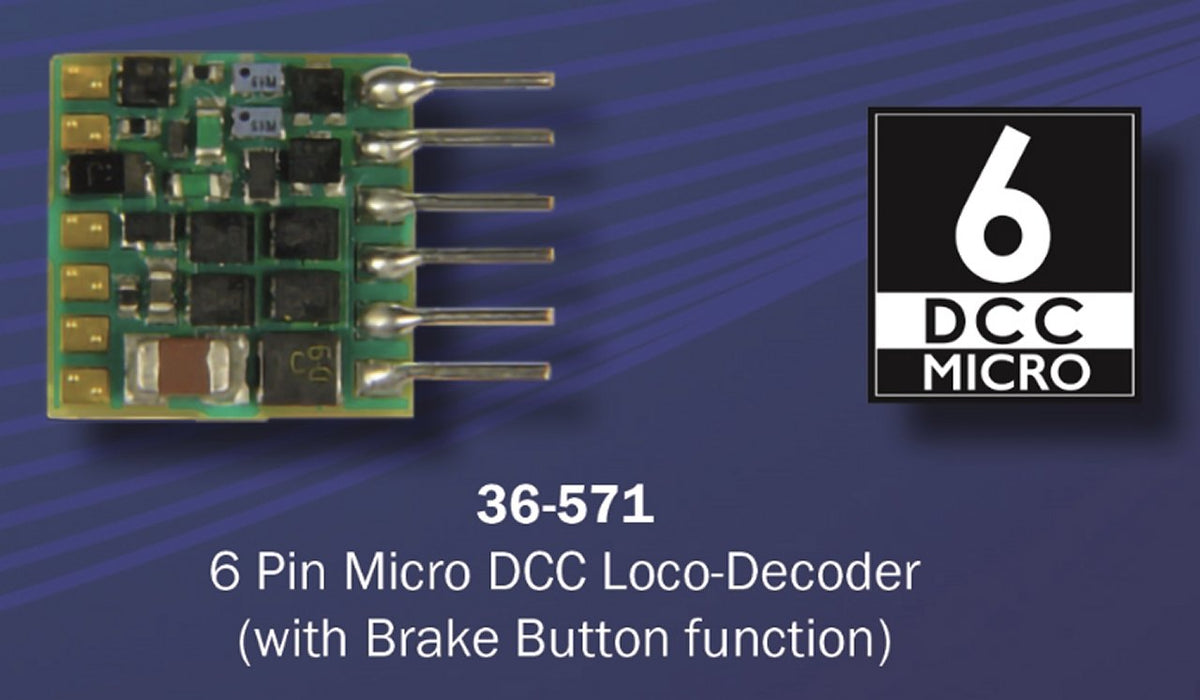

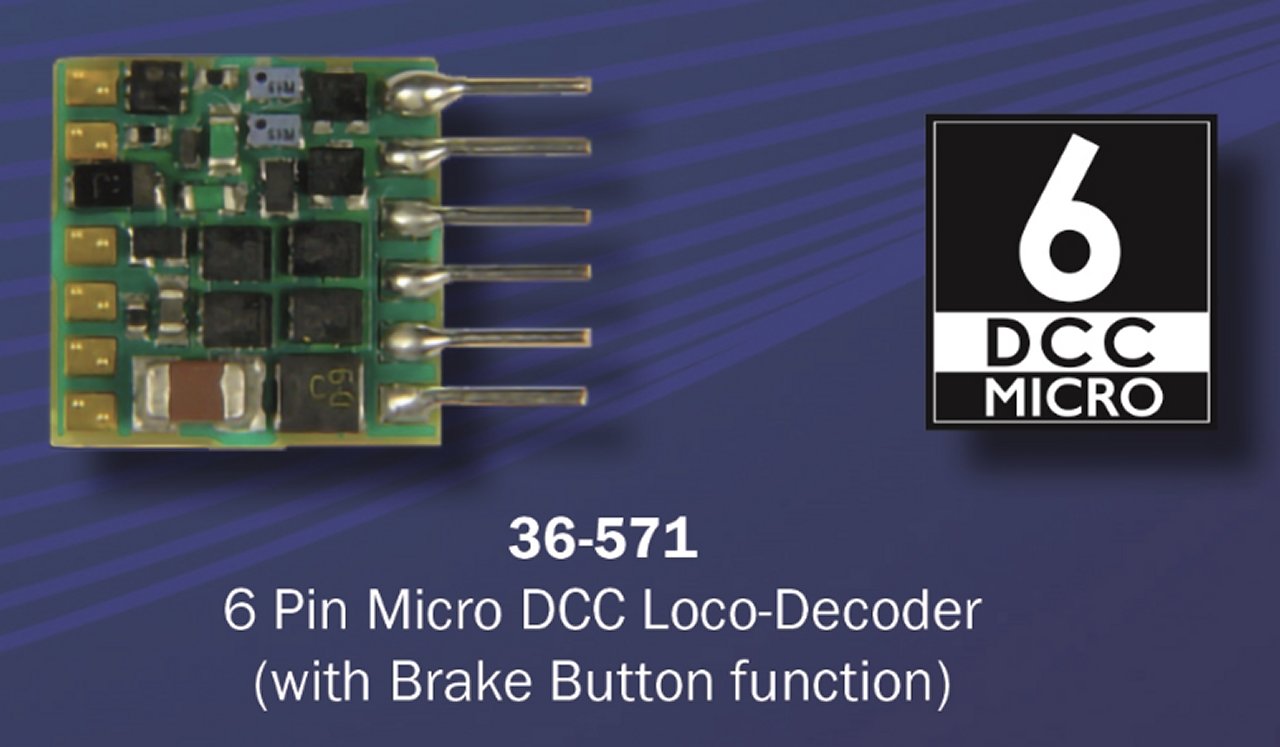

Bachmann 6 Pin Micro DCC Loco-Decoder

A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket and where minimal space is available for the decoder, for instance the Graham Farish Class N Scale 03 and 04 Diesel Shunters and the Bachmann Narrow Gauge OO9 Scale Quarry Hunslets.

Highlights include:

Multi-mode (NMRA-DCC format, Motorola protocol and DC Analogue) with Back EMF function

6 powered function outputs

0.7A continuous load

Suitable for models equipped with DC motors (including coreless motors)

Brake Button function for realistic control of braking (operates on F2)

Operating Modes

Multi-mode (NMRA-DCC format, Motorola protocol and DC Analogue) with Back EMF function

14, 28 and 128 speed steps

Short and Long addresses

Motor Control Features

Suitable for models equipped with DC motors (including coreless motors)

0.7A continuous load

Variable pulse width frequency motor regulation (up to 40kHz)

Motor output overload protection; Back EMF (de-selectable)

Function Outputs

6 powered-function outputs with overload protection (4 outputs connect via solder pads)

500mA load per output

500mA total load of all function outputs

Shunting speed and momentum key selectable

Dimensions

8mm x 8mm x 2.4mm

Default Address

Address 3

Programming

DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

RailCom® Feedback system

Upgradable firmware

This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MX616N at http://www.zimo.at/web2010/documents/MX-small-decoders_EN.pdf
