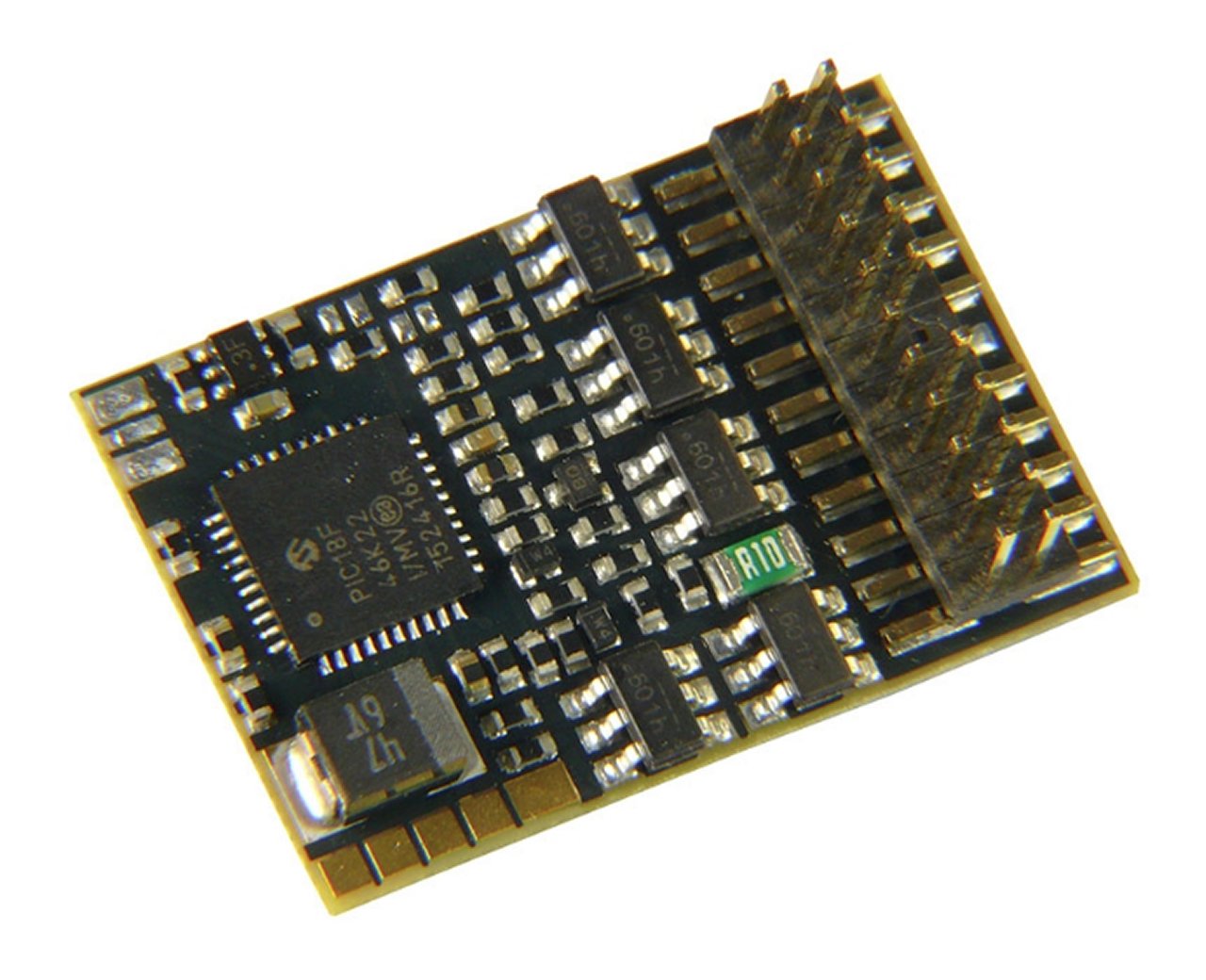

Bachmann PluX 22 Decoder NEM658

A Plux22 (NEM658) DCC Decoder suitable for models fitted with a Plux22 DCC decoder socket.

Highlights include:

• Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
• 11 function outputs (9 powered and 2 logic level)
• 1.2A continuous load
• Suitable for models equipped with DC motors (including coreless motors)
• Brake Button function for realistic control of braking (operates on F2)

Operating Modes

• Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
• 14, 28 and 128 speed steps
• Short and Long addresses

Motor Control Features

• Suitable for models equipped with DC motors (including coreless motors)
• 1.2A continuous load
• Variable pulse width frequency motor regulation (up to 40kHz)
• Motor output overload protection; Back EMF (de-selectable)

Function Outputs

• 9 powered-function outputs with overload protection
• 800mA load per output
• 800mA total load of all function outputs
• 2 additional logic level outputs
• Shunting speed and momentum key selectable

Dimensions

• 22mm x 15mm x 3.5mm

Default Address

• Address 3

Programming

• DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

• RailCom® Feedback system
• Capacitor connections
• Upgradable firmware

This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MX633P22 at www.zimo.at/web2010/documents/MX-KleineDecoder_E.pdf
