Bachmann Next18 Pin DCC Decoder

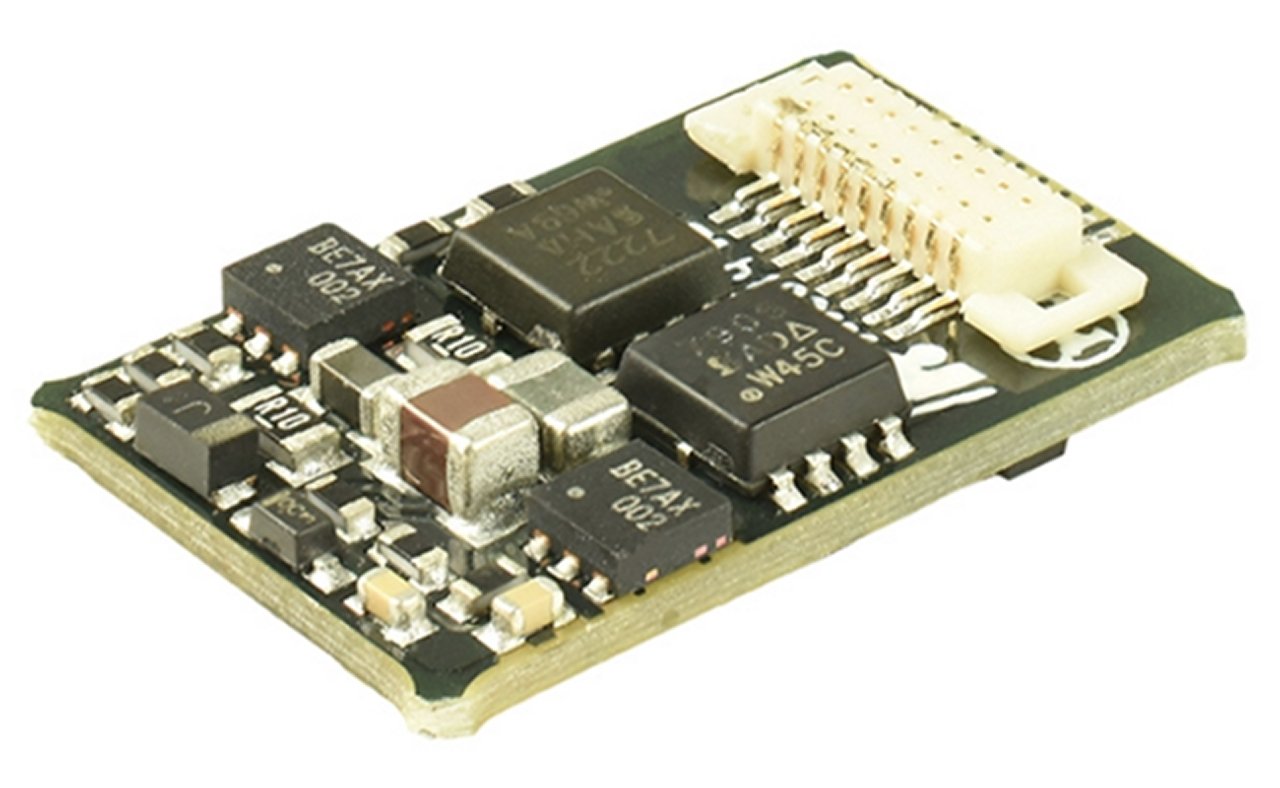

36-567A Bachmann Next 18 Pin DCC Decoder.

A Next18 (NEM662) DCC Decoder with brake Button function for realistic control.

Suitable for models fitted with a Next18 DCC decoder socket.

Highlights include:

• Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function
• 4 powered function outputs (+2 logic level and 2 logic level/SUSI outputs)
• 0.7A continuous load
• Suitable for models equipped with DC motors (including coreless motors)
• Brake Button function for realistic control of braking (operates on F2)

Operating Modes

• Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function
• 14, 28 and 128 speed steps
• Short and Long addresses

Motor Control Features

• Suitable for models equipped with DC motors (including coreless motors)
• 0.7A continuous load
• Variable pulse width frequency motor regulation (up to 40kHz)
• Motor output overload protection; Back EMF (de-selectable)

Function Outputs

• 4 powered-function outputs with overload protection.
• 500mA load per output
• 500mA total load of all function outputs
• 2 additional logic level outputs and 2 logic level/SUSI outputs
• Shunting speed and momentum key selectable

Dimensions

15mm x 9.5mm x 2.8mm

Default Address

Address 3

Programming

DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

RailCom® Feedback system

Upgradable firmware
