Bachmann 8 Pin DCC Decoder RailComPlus Compliant

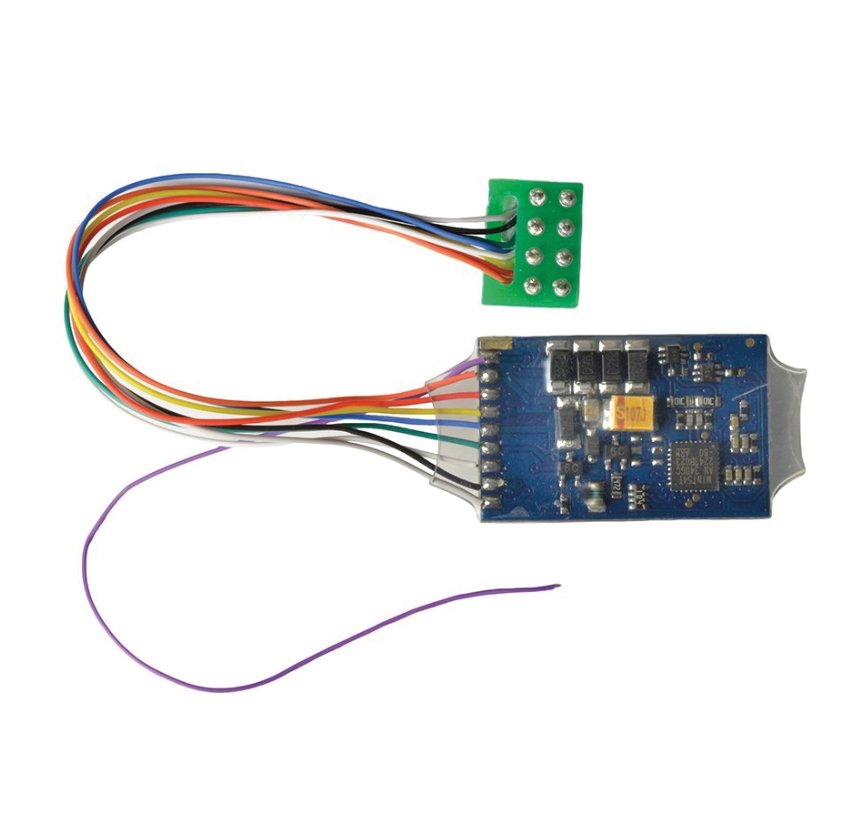

36-566A Bachmann 8 Pin DCC Decoder 0.9 Amp 4 Function RailComPlus Compliant.

A 8 Pin (NEM652) DCC Decoder suitable for models fitted with a 8 Pin DCC decoder socket

Highlights include:

Dual-mode DCC/DC decoder with Back EMF function

4 powered function outputs

0.9A continuous load

RailComPlus® for automatic registration on Dynamis Ultima

Suitable for models equipped with DC motors (including coreless motors)

Operating Modes

NMRA/DCC with 14, 28 and 128 speed steps

Short and Long addresses

DCC and DC operation (DC operation is de-selectable)

Automatic recognition of operational mode and DCC speed step selection

Supports Lenz® LG 100 braking sections

Motor Control Features

Suitable for models equipped with DC motors (including coreless motors)

0.9A continuous load

Silent & safe 20kHz pulse width frequency motor regulation

Motor output overload protection; Back EMF (de-selectable)

Function Outputs

4 powered-function outputs with overload protection

250mA load per output

500mA total load of all function outputs

Shunting speed and momentum key selectable

Dimensions

25.5mm x 15.5mm x 4.5mm (+ wiring harness)

Default Address

Address 3

Programming

DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

RailCom® Feedback system

RailComPlus® automatic Registration

This decoder is manufactured on behalf of Bachmann Europe by ESU. For full technical specifications and instructions, please refer to the ESU user guide for Lokpilot Standard 53611 at www.esu.eu/en/products/former-products/lokpilot-standard/
