DCC-ESP.Set DCC Concepts ESP Starter Set

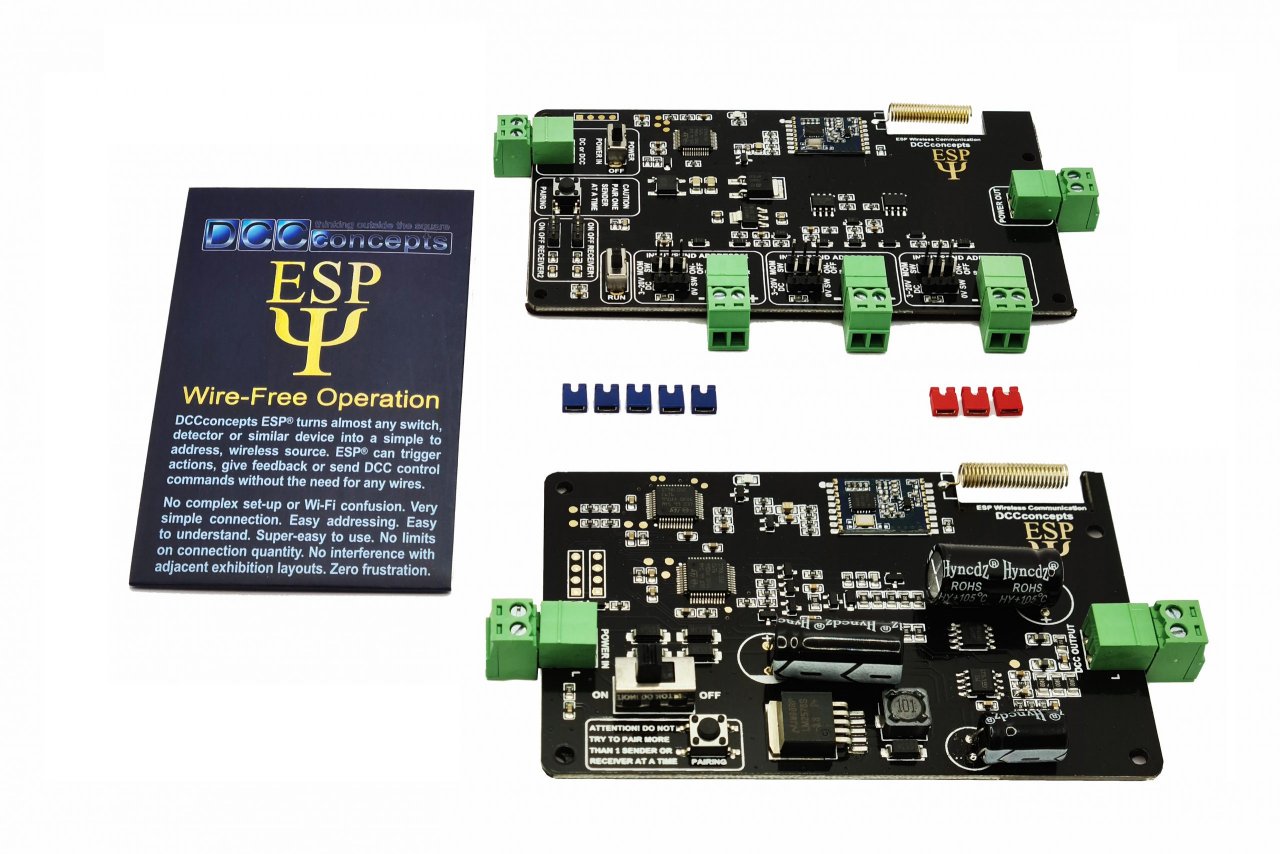

ESP® Starter Set – 1x 3-Output DCC Transmitter & 1x Wireless DCC Receiver Unit

This Starter Set contains everything you need to get going with ESP®! Just add more transmitters when you’re ready to add more devices to your system! Presented in a smart leather box, your ESP® Starter Kit will reach you in perfect condition and could make the perfect gift!

3-Output DCC Transmitter
Very easy to use, this unit is the heart of ESP®.
DCC-ESPS.3 can be powered by a DCC track bus or with any regulated DC power source or battery able to deliver from 12 to 20 volts.
DCC-ESPS.3 has three inputs that can be connected to any form of detection or switch and three independent wireless outputs, each with its own DCC address.
The ESP® address range is from 1 to 2044.
To complete your wire-free installation, the DCC-ESPS.3 is paired with the DCC-ESPR.1 receiver which receives the commands and delivers them to your DCC system or control panel, either as a direct DCC command or as a “sniffer” device, so your screen-based DCC system can also receive feedback.
DCC-ESPS.3 can pair with multiple receivers.
Unlike Wi-Fi based systems, ESP® has no limits on the quantity of input channels and there is zero possibility of interference.
ESP® has full power-off memory and is also protected against wrong connections.

ESP® Wireless DCC Receiver Unit
DCC-ESPR.1 is both an ESP® receiver and a 1.5Amp DCC system power bus generator as well as being a very clever “sniffer” device!
DCC-ESPR.1 can be powered by a DCC track bus or with any regulated DC power source or battery able to deliver from 12 to 20 volts.
It has just two pairs of terminals, a power switch and a pairing switch. Connect it to the track bus and it will synchronise mimic panels with all of your accessory operations.
Connect it to the sniffer port of your screen based system and it will update the display.
DCC-ESPR.1 can even be used as the entire basis for an independent DCC power bus, so it really is versatile – and simplicity itself!
DCC-ESPR.1 requires no “programming” and is already provided with a unique address at the time of manufacture. Of course, no two receivers will ever have the same address, so conflicts are 100% impossible!
Unlike Wi-Fi based systems, DCCconcepts ESP® has no limits on the quantity of linked transmitters and there is no need for routers, passwords or computers when using ESP®.
DCC-ESPR.1 has power-off memory and is also protected against wrong connections.
