36-567A Bachmann Next 18 Pin DCC Decoder
Click an image to enlarge.

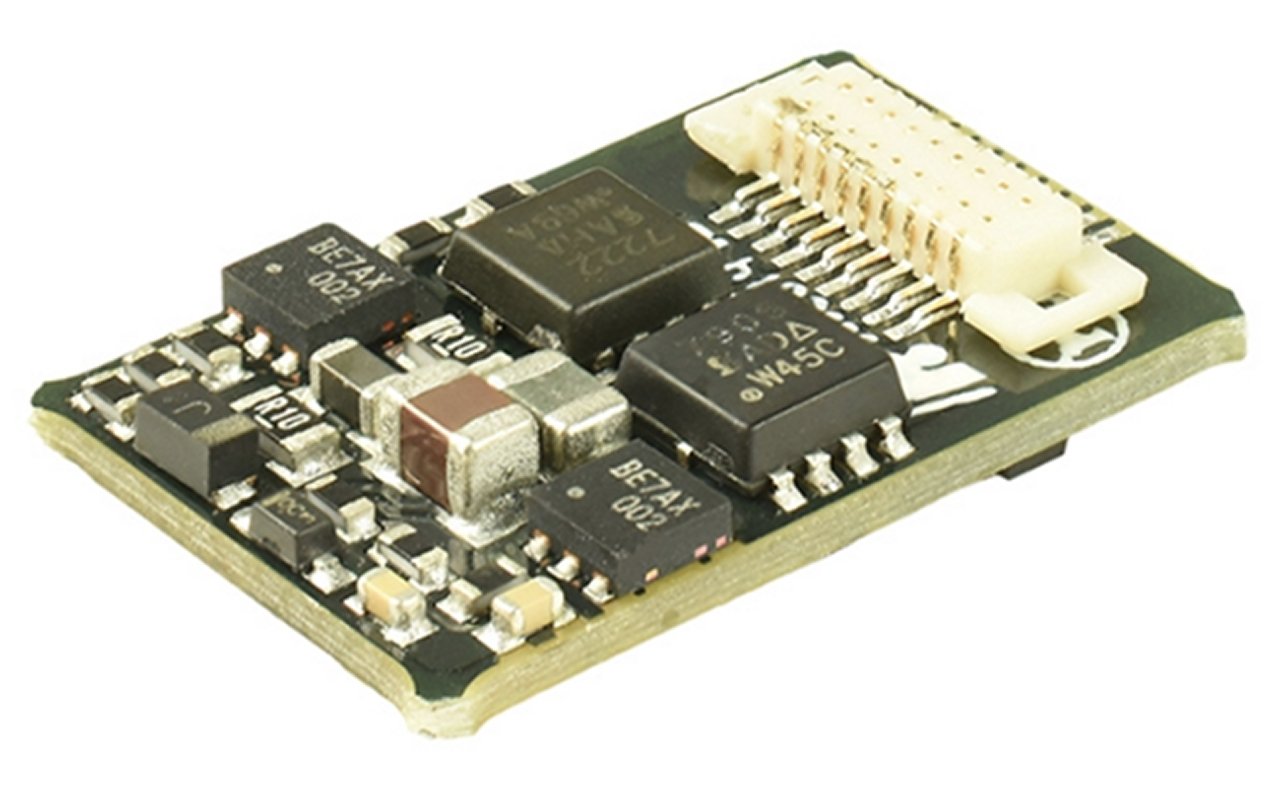

36-567A Bachmann Next 18 Pin DCC Decoder

Add To Comparison

36-567A Bachmann Next 18 Pin DCC Decoder.

A Next18 (NEM662) DCC Decoder with brake Button function for realistic control.

Suitable for models fitted with a Next18 DCC decoder socket.

Highlights include:

Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function

4 powered function outputs (+2 logic level and 2 logic level/SUSI outputs)

0.7A continuous load

Suitable for models equipped with DC motors (including coreless motors)

Brake Button function for realistic control of braking (operates on F2)

Operating Modes

Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function

14, 28 and 128 speed steps

Short and Long addresses

Motor Control Features

Suitable for models equipped with DC motors (including coreless motors)

0.7A continuous load

Variable pulse width frequency motor regulation (up to 40kHz)

Motor output overload protection; Back EMF (de-selectable)

Function Outputs

4 powered-function outputs with overload protection.

500mA load per output

500mA total load of all function outputs

2 additional logic level outputs and 2 logic level/SUSI outputs

Shunting speed and momentum key selectable

Dimensions

15mm x 9.5mm x 2.8mm

Default Address

Address 3

Programming

DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

RailCom® Feedback system

Upgradable firmware

Name:
36-567A Bachmann Next 18 Pin DCC Decoder
Price:
£ 34.95 Saving £3.00 (7.91%) on RRP (£37.95)
Product Code:
10019528
Availability:
In Stock - usually despatched within 24 hours
Stock Level:
12
