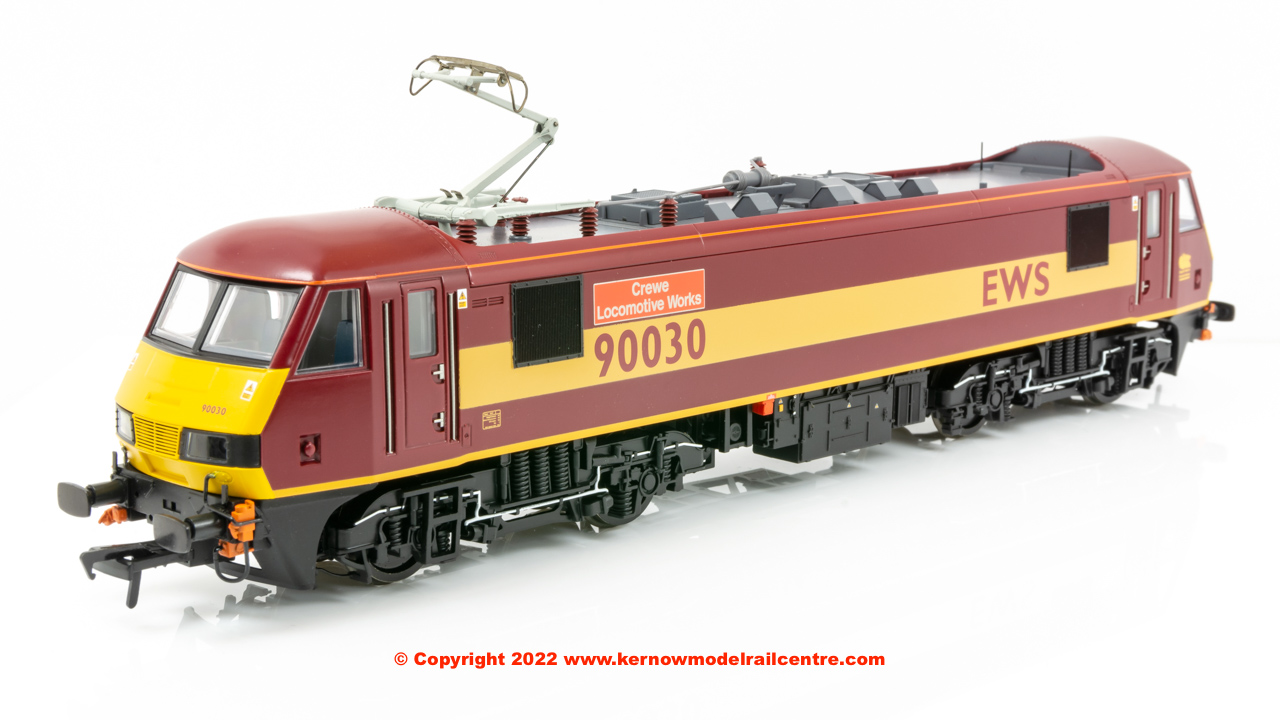

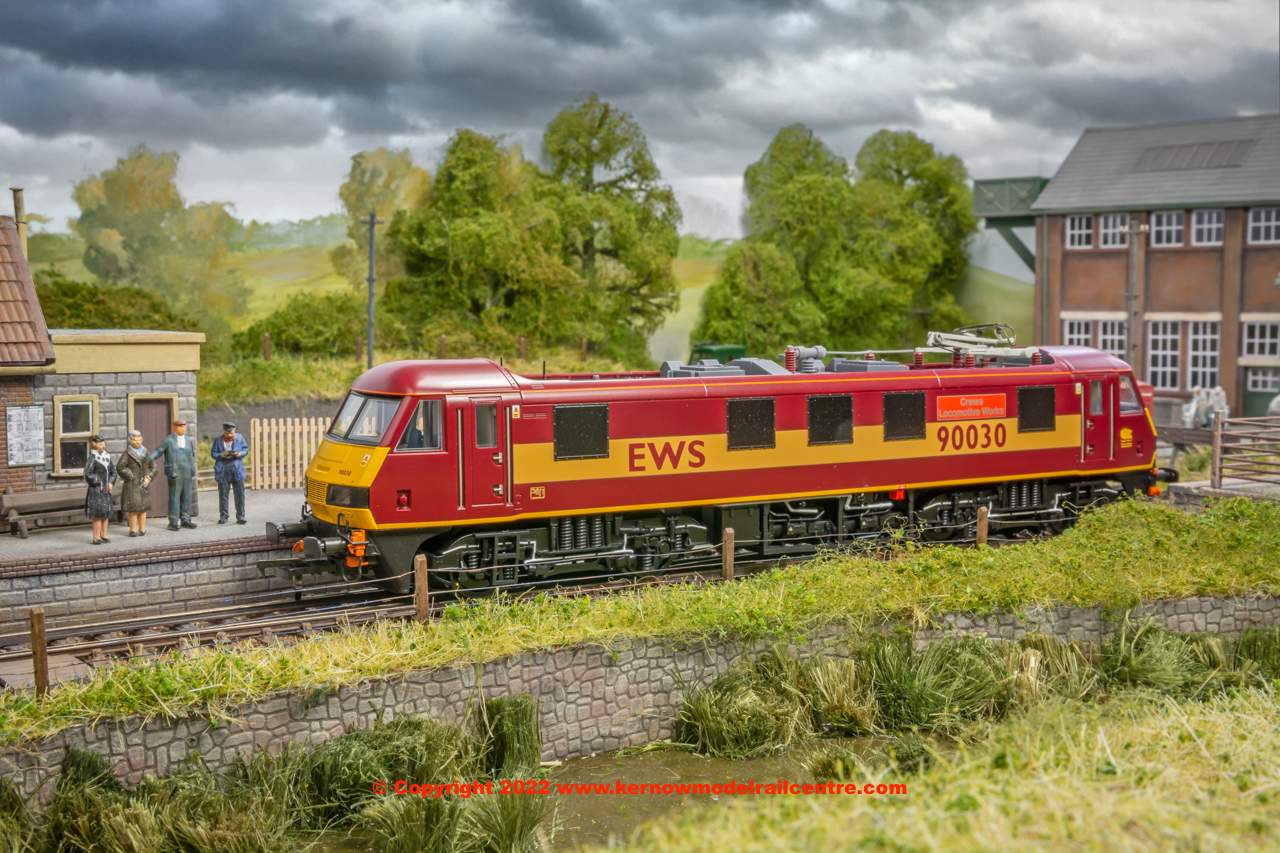

32-619SF Bachmann Class 90 90030 'Crewe Locomotive Works' EWS

Look no further than the Branchline Class 90 if you’re searching for the pinnacle in British OO scale Electric locomotives. Combining a highly accurate and detailed body shell with an authentic chassis and bogies – each featuring a wealth of separately fitted detail – the Branchline Class 90 captures the distinctive shape and character of the real locomotives to a tee. Add to this the multiple lighting functions and their realistic operations, such as the Day or Night mode for the directional lighting and the cab lights that illuminate only in the direction of travel and when the model is stationary, and it’s easy to see why this model is the complete package. What’s more, when used on DCC the Pantograph, which itself is a fine reproduction featuring metal components, can be operated remotely via the built-in servo motor, meaning you can raise and lower this characteristic feature at any time, without having to intervene by hand. This SOUND FITTED model will take your enjoyment to the next level with its authentic sound effects, whether used on DCC or analogue control, and DCC-operation of the of the motorised pantograph.

• Bachmann Branchline OO Scale
• Era 9
• Pristine EWS livery
• Named ‘Crewe Locomotive Works’
• Running No. 90030
• Etched Nameplates included SOUND FITTED - Fitted with a ESU Loksound V5DDC Sound Decoder – See below for the function list
• Length 250mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Rectangular Freight Buffers
• Screw link Couplings
• TDM Cables fitted to the Buffer Sides
• Original Slatted Horn Grille with Two Horns
• Large Battery Charger
• Battery Boxes and Switch with Hinged Access panels which are Ribbed

BACHMANN BRANCHLINE CLASS 90 SPECIFICATION

MECHANISM:

• Five pole, twin shaft motor with two flywheels providing drive to both bogies
• All axle drive
• Electrical pickup from all wheels
• Separate metal bearings fitted to each axle
• Diecast metal chassis block
• Gearing arranged for prototypical running speeds and haulage capabilities
• 5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
• Close coupling mechanism fitted at each end, each of which is fitted with coupling pockets to NEM362 standards
• Designed to operate on curves of second radius (438mm) or greater

DETAILING:

• Metal Pantograph, sprung for posing in the up or down position, or can be raised/lowered via the built-in servo motor when operated on DCC
• Bogies constructed from multiple components featuring full relief detail
• Separately applied metal detail parts, including horn grilles, roof grilles, lamp irons and aerials
• Sprung buffers
• Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts

LIGHTING:

• Directional lighting, switchable on/off at either end on DCC or Analogue control
• Day/Night Mode, selectable on DCC or Analogue control
• Directional lights and Day/Night Mode selection is controlled via easy-access switches on the roof when operated on Analogue control
• Cab lighting, switchable on/off (at the leading end, when used on DCC only)
• Authentic light colours and temperatures selected for each model based on era and application

DCC:

• 21 Pin DCC decoder interface
• Easy-access DCC decoder socket located underneath removable roof panel

SOUND:

• Speaker installed in all models for optimum sound reproduction
• ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED versions
• Sound files produced specifically for the Bachmann Branchline Class 90 using recordings from real locomotives
• SOUND FITTED models operate on DCC and Analogue control as supplied.

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model using BR/TOC specification colours
• Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours

SOUNDS

F0 - Directional Lights - On/Off (plus Light Switch Sound)

F1 - Sound - On/Off (plus Battery Switch and Compressor Sounds)

F2 - Brake

F3 - Low Horn (Playable)

F4 - Two-Tone Horn

F5 - Parking Brake On/Off (Loco won’t move with Parking Brake On)

F6 - On - Pantograph Up / Off - Pantograph Down (with Sounds)

F7 - Flange Squeal (Speed Related)

F8 - Windscreen Wipers

F9 - Air Dump

F10 - On - Guard’s Whistle / Off - Driver’s Response

F11 - Spirax Valve

F12 - On - Pantograph Up (Sounds Only) / Off - Pantograph Down (Sounds Only)

F13 - AWS

F14 - Directional Lights - On - Day Mode / Off - Night Mode

F15 - Cab Lights - On/Off (Direction Dependent)

F16 - Coupling Up

F17 - Uncoupling

F18 - On - Cab Door Open / Off - Cab Door Shut

F19 - Uncoupling Movement Cycle

F20 - Directional Lights Off (Non-Pantograph End)

F21 - Directional Lights Off (Pantograph End)

F22 - Fire Alarm Test

F23 - Volume Control (6 levels)

Analogue Users: Please note that any automated drive sounds will be played when this model is used on analogue control (DC) straight from the box!
